Machines

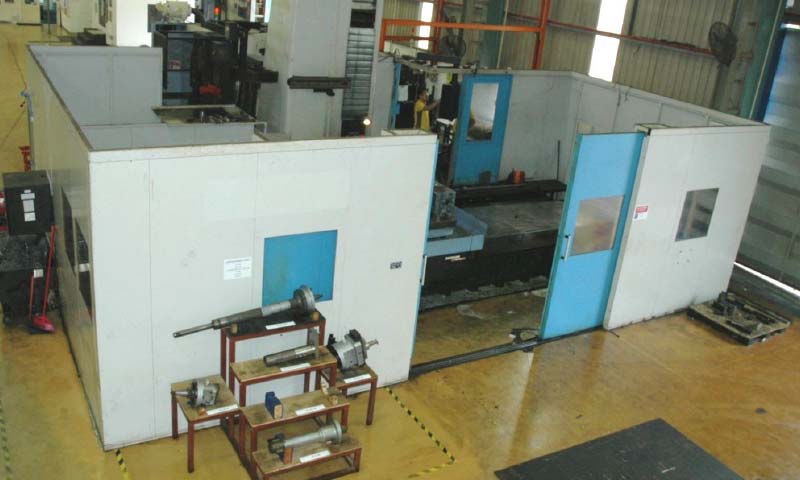

HBM – Doosan DBC130L Horizontal Boring Mill
Controls
  • FANUC 31iMA
Travel
  • X-axis : 4000mm (157.7")
  • Y-axis : 2300mm (90.6")
  • Z-axis : 2000mm (78.7")
  • W-axis : 700mm (27.6")
Max. load weight
  • 15,000kg (33,068.9lb)
Capacity
  • Table dimensions : 1600mm x 1800mm
  • Max. work piece diameter : 2400mm
  • Flood Coolant Pressure : 71.7psi
  • T.S Coolant Pressure : 284.3psi

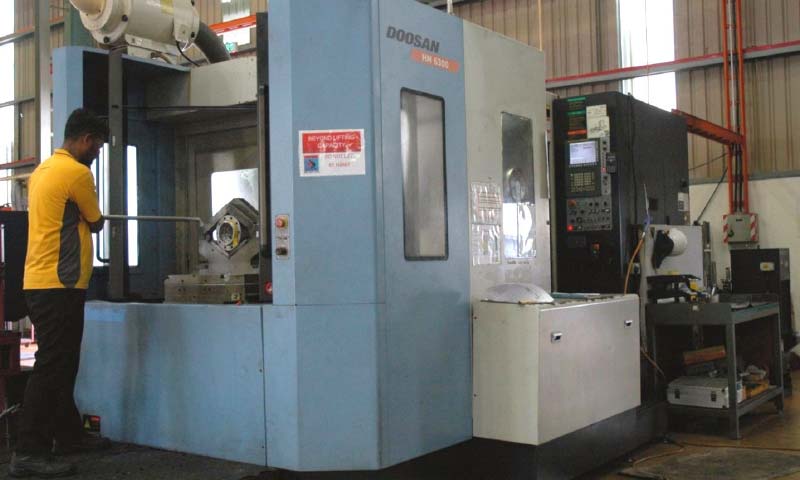

HMC01 – Doosan HM6300 Horizontal Machining Centre
Controls
  • FANUC 31i-A
Travel
  • X-axis : 1000mm (39.4")
  • Y-axis : 800mm (31.5")
  • Z-axis : 650mm (25.6")
Max. load weight
  • 1,200kg (2645.5lb)
Capacity
  • Pallet Dimensions : 630mm x 630mm
  • Max. work piece size : 1000mm D x 1000mm H
  • Flood Coolant Pressure : 100psi
  • T.S Coolant Pressure : 1000psi

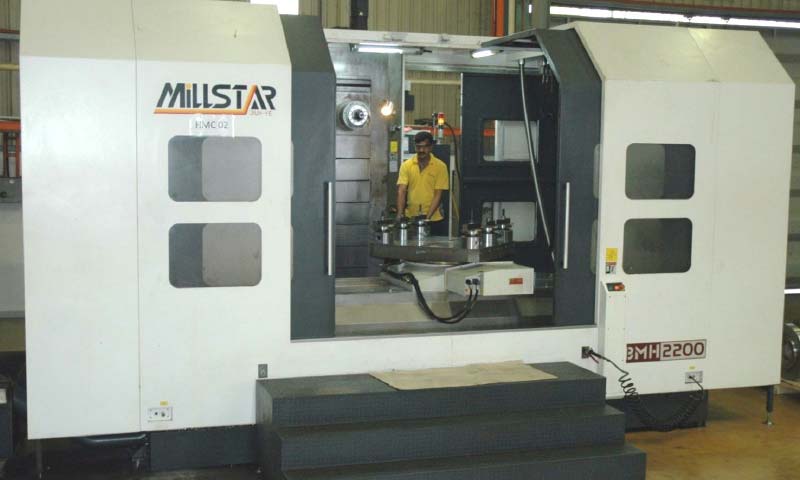

HMC02 – Mill Star BMH-2200 Horizontal Machining Centre
Controls
  • FANUC 0iMD
Travel
  • X-axis : 2200mm (86.6")
  • Y-axis : 1500mm (59.0")
  • Z-axis : 1250mm (49.2")
Max. load weight
  • 3,500kg (7,700lb)
Capacity
  • Pallet dimensions : 1000mm x 1000mm

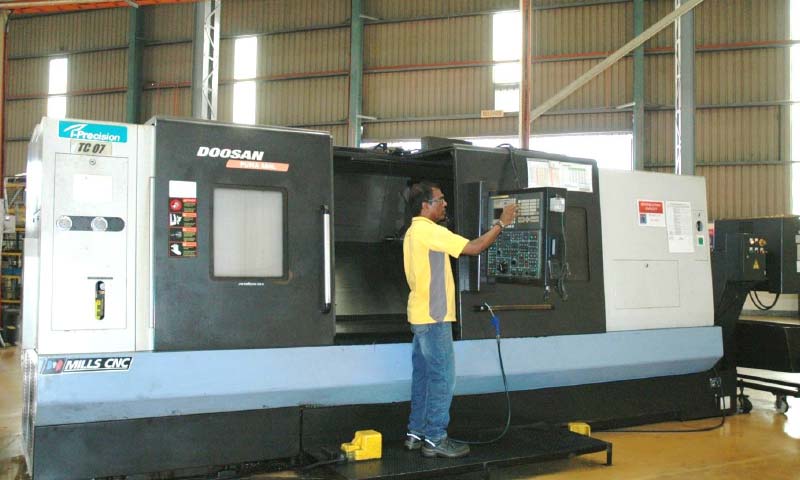

TC07 – Doosan Puma 480L Turning Centre
Controls
  • FANUC 32iT
Travel
  • X-axis : 362mm (14.3")
  • Z-axis : 650mm (25.6")
Max. load weight
  • Chuck : 900kg (1984lb)
  • Shaft : 3400kg (7495lb)
Capacity
  • Swing over bed : 900mm
  • Swing over saddle : 720mm
  • Max. turning diameter : 650mm
  • Max. turning length : 2042mm

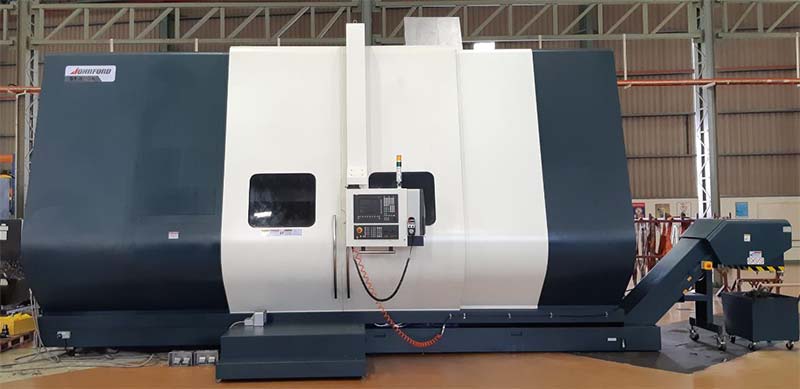

John Ford ST-80CX 5 Axis Turn Mill
Controls
  • SIEMENS 840D
Travel
  • B-axis: -110° ~ +90°
  • B-axis indexing: Every 5°
  • CF-axis indexing: 0.001°
  • X-axis : +716mm/ -85mm
  • Z-axis : 2000mm
  • Y-axis: +120mm/-80mm
Capacity
  • Swing over bed : 1200mm
  • Swing over cross slide : 850mm
  • Max. turning diameter : 800mm
  • Max. turning length : 1900mm

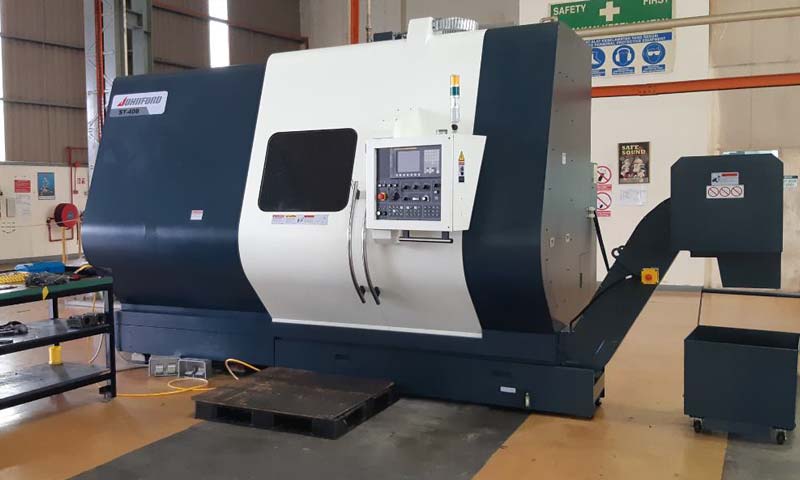

TC06– John Ford ST-40B Turning Centre
Controls
  • FANUC Oi-TF
Travel
  • X-axis : 320mm (12.6”)
  • Z-axis : 800mm (31.5”)
Capacity
  • Swing over bed : 790mm
  • Swing over saddle : 600mm
  • Max. turning diameter : 450mm
  • Max. turning length : 750mm

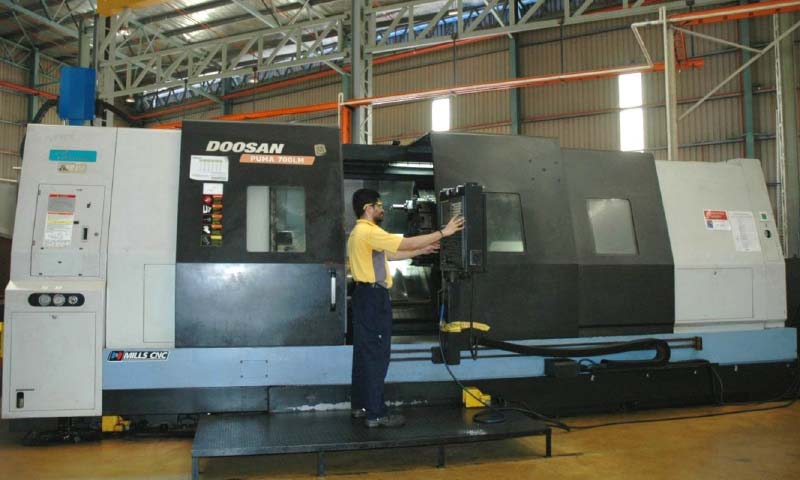

TMC09 – Doosan Puma 700LM Turn Mill Centre
Controls
  • FANUC 32iT
Travel
  • X-axis : 470mm (18.5")
  • Z-axis : 3235mm (127.4")
Max. load weight
  • Chuck : 1400kg (3086lb)
  • Shaft : 3400kg (7495lb)
Capacity
  • Swing over bed : 1030mm
  • Swing over saddle : 800mm
  • Max. turning diameter : 900mm
  • Max. turning length : 3000mm

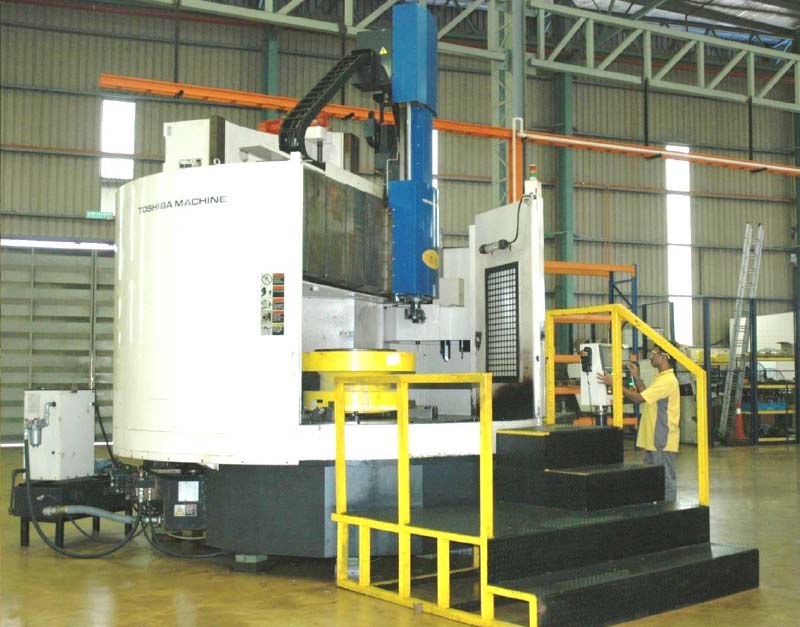

VTL – TOSHIBA TUE200(S) Vertical Turn / Mill Centre
Controls
  • FANUC 31i-A
Travel
  • X-axis : 1400mm
  • Z-axis : 900mm
  • W-axid : 1000mm (verical travel cross rail)
Max. load weight
  • 15,000kg
Capacity
  • Table diameter : 2000mm
  • Max. swing : 2400mm
  • Table top to ram bottom : 1720mm
  • Max. cutting height : 1550mm

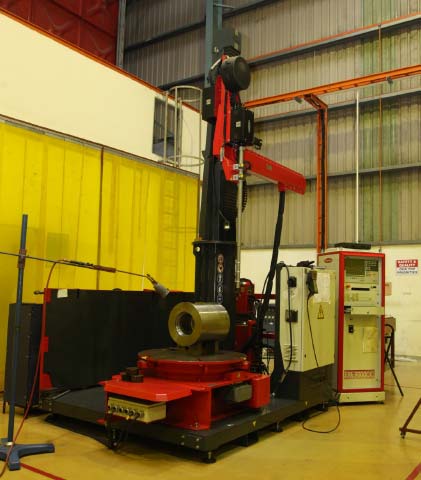

Compact Cladding Cell Advanced 1500
Controls
  • FPA 9000CC
Faceplate
  • 1500mm (59")
Work piece max. height
  • 1000mm (39")
Max. load weight
  • 1500kg (3307lb)

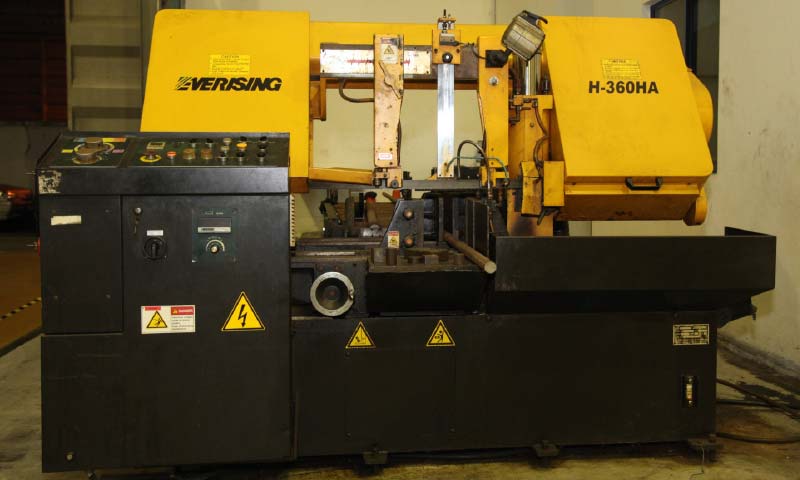

Bandsaw
  • Everising H-360HA
  • Bundle Cutting :
    • 340mm (13”) Width
    • 160mm (6”) Height

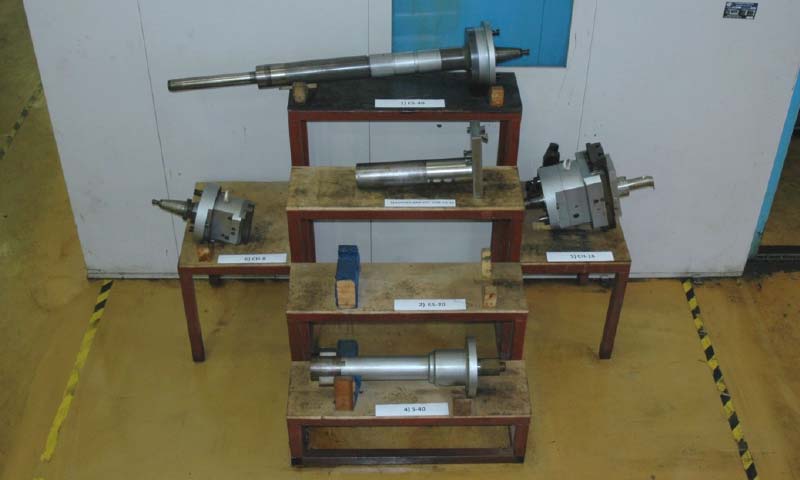

Special Tools
  • Contouring tools:
    • Facing head:
      • CH-8
      • CH-16
    • Seat pocket tools:
      • ES20
      • ES40
      • S40
  • Adding :
    •  Jigs & fixtures for manifolds.
    • Gun drilling.
    • Autoclave – form tool, medium pressure.
    • Specialised drills & taps to suit grade of special materials

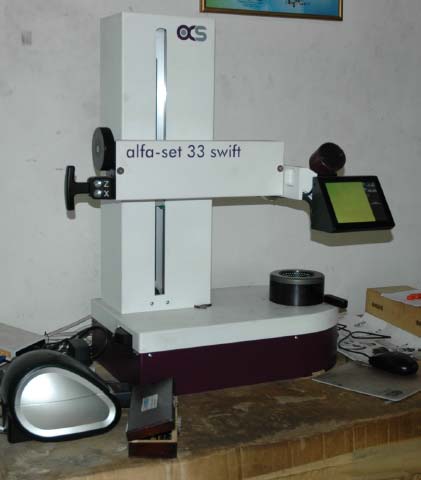

Tools Pre Setter
  • Model: Alfa-Set 33
  • All the tools are preset, measured and checked on the tools pre setter prior to use on the CNC machine tools.
  • Machine tool downtime is reduced to a minimum. Time for measuring on the machine is completely eliminated.

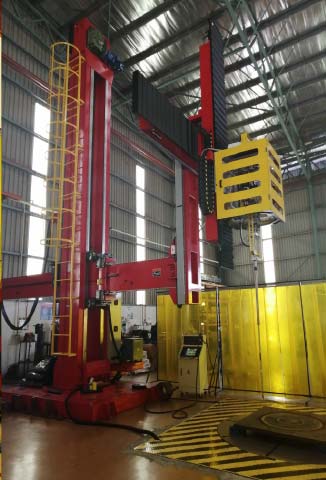

Cladding ETROW-4433P1
Systems
  • Fronius Controller
Work piece max. diameter
  • 3000mm (120”)
Work piece max. height
  • 5000mm (200”)
Max. load weight
  • 10,000 kg
